Brochure Download
■PID auto tuning
■Seal : with Flange, without Flange
■Full Auto Mode , Semi Auto Mode
■3 Gas ports (Inert gas, Pressure gas, Actuator driving device)
Pressure gas and Actuator driving devce can be separated. The inert gas can be economized.
(When using the air for the actuator driving device)

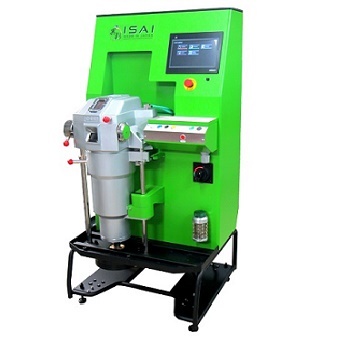

※ When we export the Vacuum Casting Machine 8kw, we need to get an export permit.
We need the following contents. ( It depends on a country)
・Contract with signature
・Some documents with signature
We can get the exprt permit wtihin 2month after application for it.
Website ：Export Control
◆Specifications
| Power Supply | Three Phase AC200～220V±10%, 50/60Hz | |
| Power consumption | 8.0kw : 9.5 KVA |
4.8kw : 5.7 KVA |
| Temp Setting range | K-type : 1200℃ R-type : 1400℃ |
K-type : 1200℃ R-type：- |
| Crucible capacity | K18 : 2.3kg K14 : 2.1kg Ag925 : 1.5kg |
K18 : 1.5kg K14 : 1.4kg Ag925 : 1.0kg |
| Flask size | φ76～130mm H90～250mm |
|
| Cooling Water | Temp : 10～30℃ |
|
| Gas | Inert gas (Algon, etc) | |
| Max pressure | 300KPA | |
| External dimension | 740mm(W)×700mm(D)×1590mm(H) | |
| Weight | around250kg | |
