The machine for cutting copper wires in HV(EV) vehicle motors.
HV(EV)vehicle motor copperwire cutter【Model ：COPC】
Exterior
Brochure Brochure Download
Features
The machine for cutting copper wires for HV (EV) motors.
-It can cut copper wires of various work sizes, such as for driving motors and power generation motors.
-After starting, it operates automatically until cutting is complete.
-A laser marker allows visual confirmation of the cutting position.
-Equipped with a shutter for safety measures.
Movie
Cutting HV motor copper wire
General Specifications
| Power supply | AC200V Three Phase |
| Power Consumption | 4.0KVA |
| Air Source | Unused |
| Hydraulic Source | Unused |
| Cutting Capacity | 30～80秒 |
| Work installation removal | Manual |
| Work Set | Person turns the hundle |
| Safety Measures | shutter |
| Size | 820(W) X 1,650(D) X 2,100(H) (mm) |
| Weight | About 780Kg |

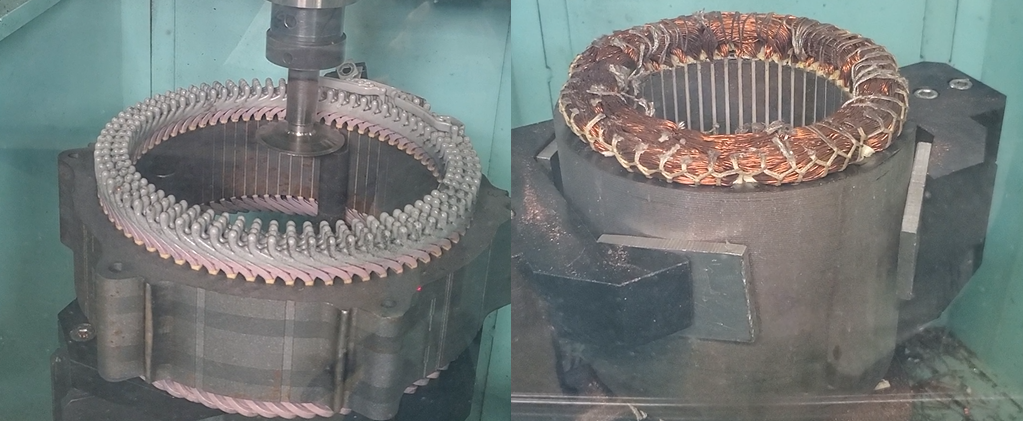

BeforeProcessing

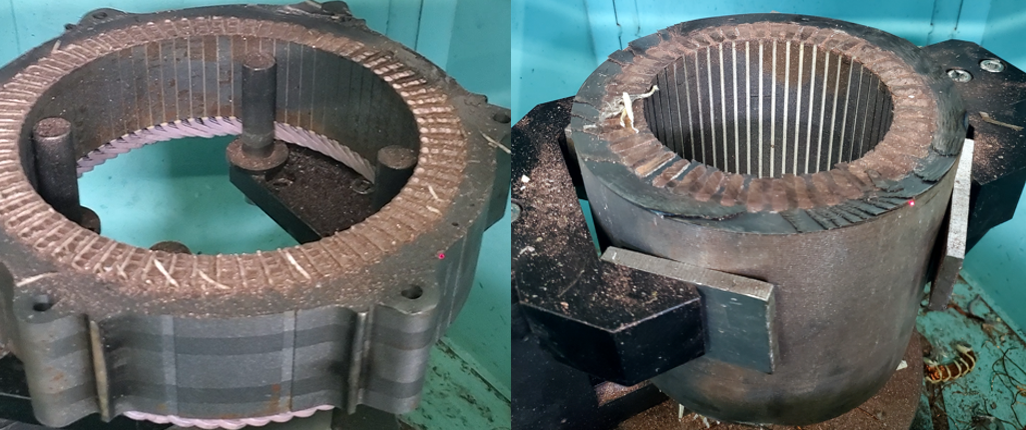

After Processing
