◆Compressor Recycling

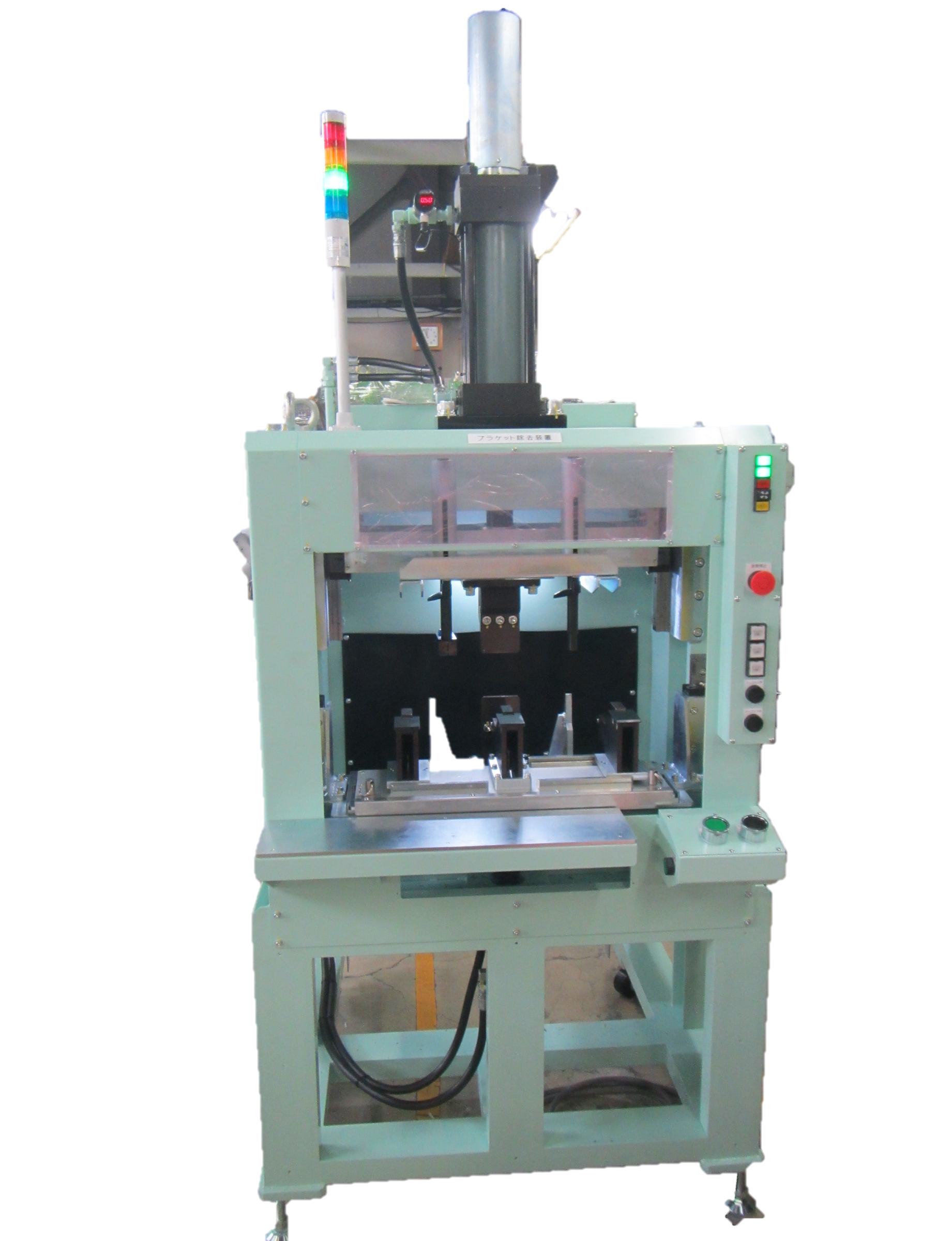

1. Bracket and Pipe Cutter
2. Pneumatic Shell Cutter
3. Motor core copper wire cutter
4. Copper Wire Drawer
■ Hydraulic Shell Cutter
※ Higher Model(Pneumatic Shell Cutter)
■ Longitudinal Cutter
※ If necessary,After shell cutter processing
■ Copper Wire Cutter
※ Only A/C Moter(Instead of Motor core copper wire cutter)
■ (Ref)Compressor disassembly whole process
◆ Features
・ The unit is designed to fit a variety of sizes.
・ Use of the hydraulic cylinder enhances performance of separation and cutting.
・ The board for placing the works, the shape of the cutter and the safety devices can be custom designed.
・ The removed brackets are dropped into the rear portable cart by the shooter.
◆ Videos
◆ General Specifications
| Power Supply | AC200V, three-phase(Japan) 2.5KVA(Japan) It depends on the country |
| Hydraulic Power Source | Max15MPa |
| Cut Diameter | Cylinder : φ80～220 |
| Safety Measures | Front: Area sensor, Side: Covers |
| External Dimension | 930 (W) X 1,069(D) X 2,160(H) (mm) |
| Weight | 730Kg |

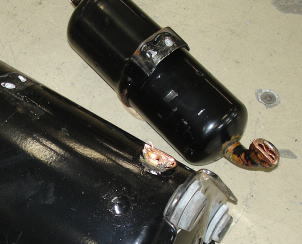

Rear Shooter
・The shooter is separated, and the accumulators dropping in the shooter can be moved in the portable cart.
