◆ Appearance
Pamphlet_Download
◆ Features
・After copper wires on the upper part of a stator are cut, just push the start button.
・The drawn out wires drop below and are discharged from the rear shooter. See the pictures below.
・The stator clamp is designed to fit a variety of shapes.
◆Videos
◆General Specifications
| Power Supply | AC100V, single-phase(Japan) 0.5KVA(Japan It depends on the country |
| Air source | 0.4MPa or more |
| Cutting Size | Outer diameter：φ90-140 ※Clamp work from outside |
| Chucking Method | Manual, Spring Clamp |
| Cutting Time | 2～3seconds (Exclude connecting and disconnecting time) |
| Safety Measures | Front area sensor |
| External Dimension | 700 (W) X 700(D) X 1,450(H) (mm) |
| Weight | 250Kg |

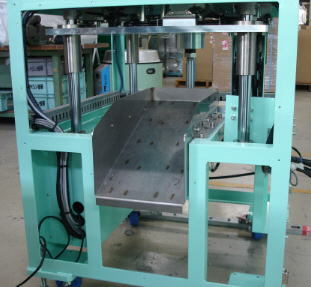

◆ Rear Shooter
◆ Dropped Copper Wires

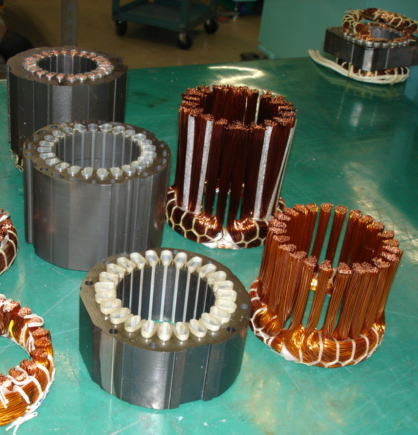

◆ Separated Copper Wires and Stators
