◆Compressor(Motor) Recycling
1. Bracket and Pipe Cutter
2. Pneumatic Shell Cutter
3. Motor core copper wire cutter
4. Copper Wire Drawer
■ Hydraulic Shell Cutter
※ Higher Model(Pneumatic Shell Cutter)
■ Longitudinal Cutter
※ If necessary,After shell cutter processing
■ Copper Wire Cutter
※ Only A/C Moter(Instead of Motor core copper wire cutter)
■ (Ref)Compressor disassembly whole process
◆ Features
・ Cutting is done by deforming the composition, and almost no cut chips are left.
・ No heat or smoke is generated, and the work environment is improved.
・ The starting position of cutting can be automatically detected.
・ The cut lines can be checked by the laser marker.
・ It is easily operable, and safety is assured.
◆ Videos
◆ General Specifications
| Power Supply | AC200V, three-phase(Japan) 1.0KVA(Japan It depends on the country |
| Air source | None |
| Cutting Size | Outer diameter：φ85-140 |
| Cutting Time | 30～60seconds (Exclude connecting and disconnecting time) |
| Safety Measures | Front area sensor |
| External Dimension | 870 (W) X 1,200(D) X 1,800(H) (mm) |
| Weight | 500Kg |

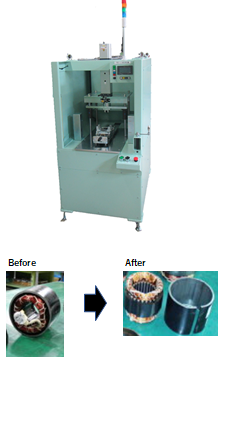

・Cut Shells and Removed Stators.
