■ Hydraulic Shell Cutter
※ Higher Model(Pneumatic Shell Cutter)
■ Longitudinal Cutter
※ If necessary,After shell cutter processing
■ Copper Wire Cutter
※ Only A/C Moter(Instead of Motor core copper wire cutter)
■ (Ref)Compressor disassembly whole process

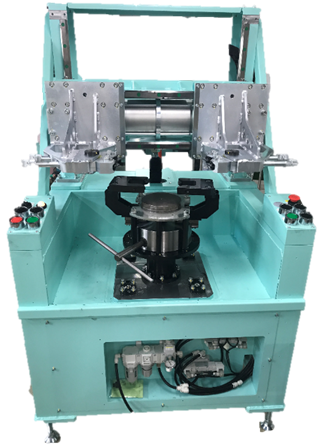

◆ Appearance
Pamphlet_Download
◆ Features
・Specializing in cutting processing. Reduced functions and reduced costs.
・It is possible to chuck all types of shells,
whether the shape is a cylinder, oval or ellipse.
・Cutting is done by deforming the composition, and almost no cut chips are left.
◆ Videos
・Cylinder Compressor Cutting
・Oval Compressor Cutting
◆ General Specifications
| Power Supply | AC200V, three-phase(Japan) 2.0KVA(Japan) It depends on the country |
| Air source | 0.4MPa or more |
| Cut Diameter | Cylinder：φ80-280 Oval：Around 100 X 280mm |
| Cutting Time | Cylinder：One point ⇒ Around 20 seconds Oval：Around 20～120 seconds ※ It depends on the shape of compressor. |
| External Dimension | 1,000 (W) X 978(D) X 1,651(H) (mm) |
| Weight | 620Kg |

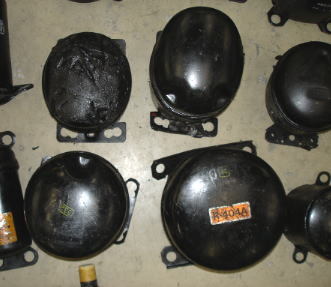

Cylinder Compressor ※Before Cutting
Oval Compressor ※Before Cutting
Cylinder Compressor ※After Cutting
Oval Compressor ※After Cutting

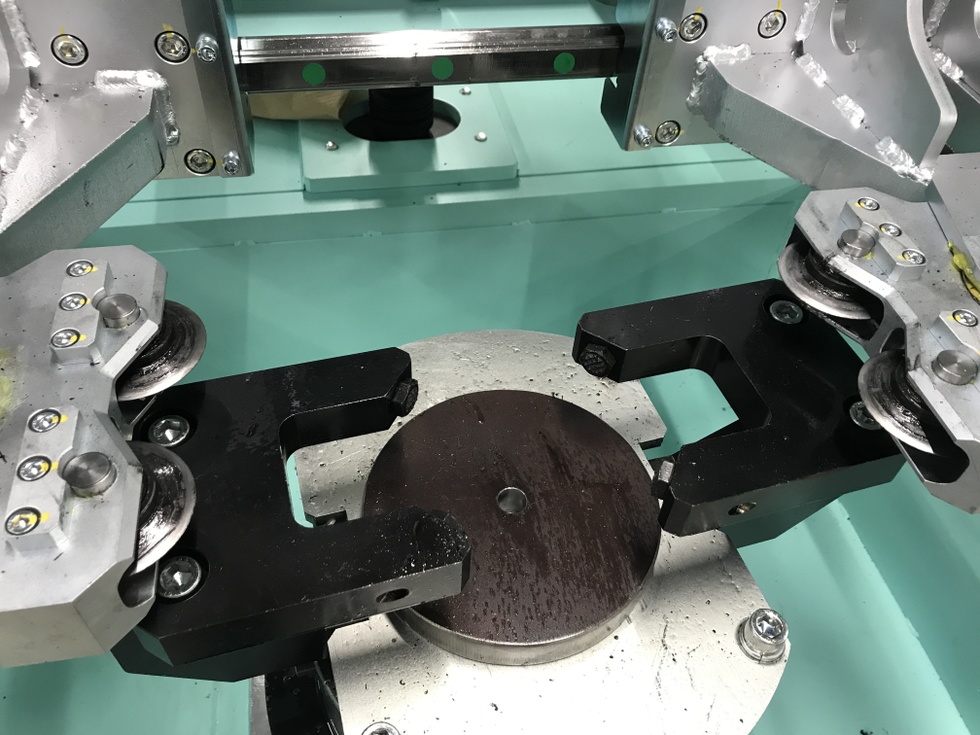

Chucking and Blade
■Chucking
・Can cut compressors of various sizes.
■Blade
・The blade is a consumable item. The blade can be easily replaced.
