◆Compressor(Motor) Recycling
1. Bracket and Pipe Cutter
2. Pneumatic Shell Cutter
3. Motor core copper wire cutter
4. Copper Wire Drawer
■ Hydraulic Shell Cutter
※ Higher Model(Pneumatic Shell Cutter)
■ Longitudinal Cutter
※ If necessary,After shell cutter processing
■ Copper Wire Cutter
※ Only A/C Moter(Instead of Motor core copper wire cutter)
■ (Ref)Compressor disassembly whole process

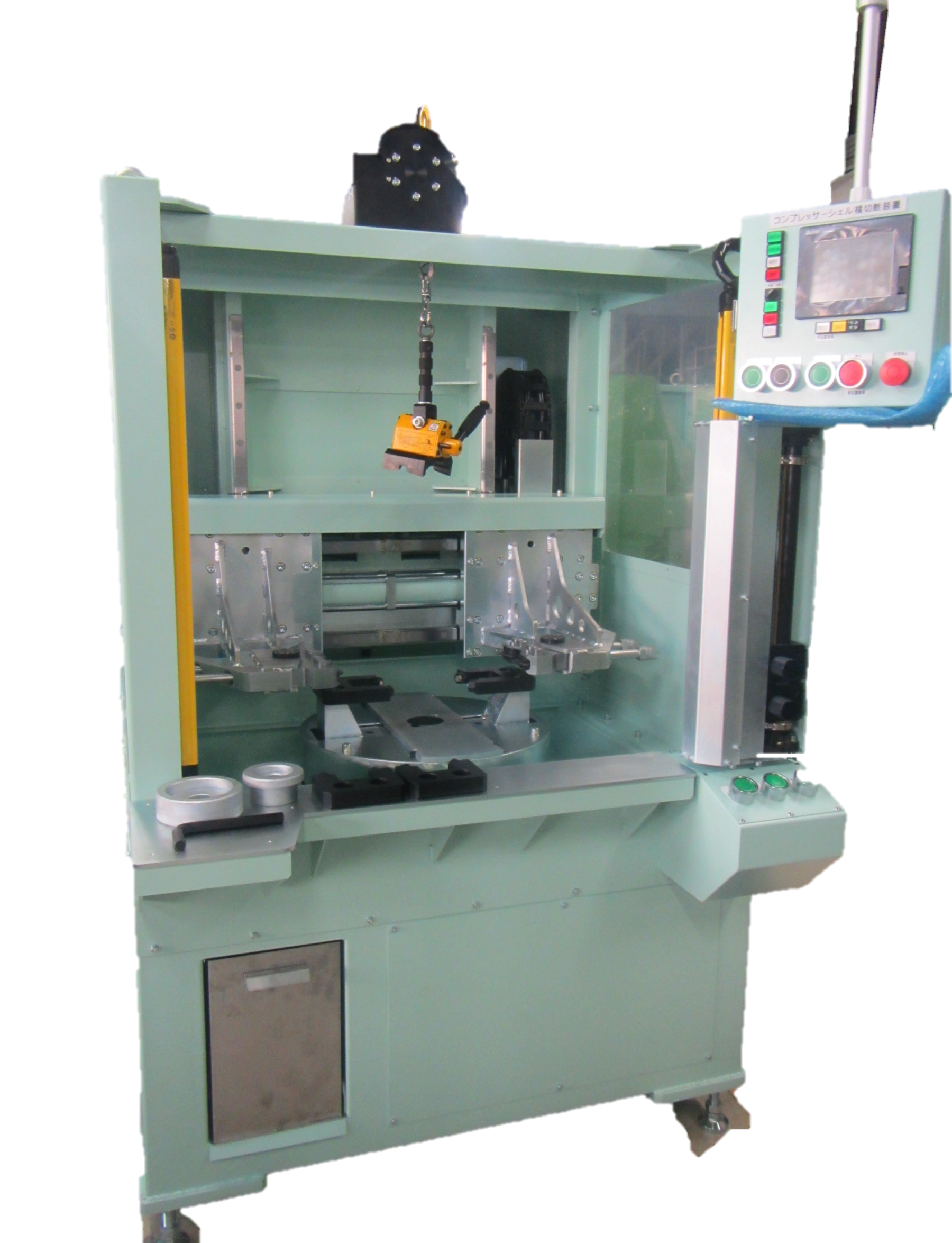

◆ Appearance
◆ Features

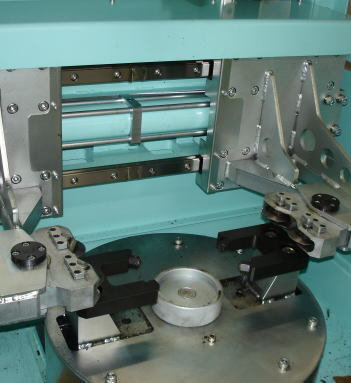

・The contact position of the cutter can be easily checked without touching.
・The cut height and diameter can be arbitrarily selected.
・It is possible to chuck all types of shells,
whether the shape is a cylinder, oval or ellipse.
・Cutting is done by deforming the composition, and almost no cut chips are left.
◆ Videos
◆ General Specifications
| Power Supply | AC200V, three-phase(Japan) 6.0KVA(Japan) It depends on the country |
| Hydraulic Power Source | Max7MPa |
| Cut Diameter | Cylinder：φ80-200 Oval：Around 80 X 250mm |
| Cutting Time | Cylinder：One point ⇒ Around 20 seconds Oval：Around 20～120 seconds ※ It depends on the shape of compressor. |
| Safety Measures | Front: Area sensor, Side: covers |
| External Dimension | 1,180 (W) X 2,000(D) X 1,708(H) (mm) |
| Weight | 1,400Kg |
◆ Major features

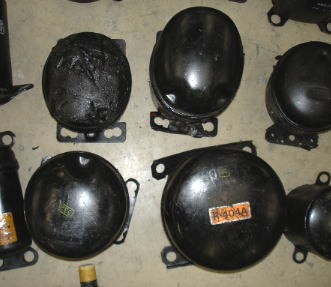

1. Cutting a wide variety of compressors (Japanese home appliance compressors: 97% cut)
2. Front full open · · · Large space(workability improvement)
3. Secure the hydraulic chuck · · compressor firmly(Improving productivity)
4. Automatic cutting end · · You can do other work
(Reduction of labor cost)
5. Laser irradiation ·· Accurate cutting position identification, automatic cutting (Reduction of labor cost)
6. Area sensor ·· Ensure the safety of workers(Improvement of safety)
7. Balancer ·· Ensure the safety of workers(Improvement of safety)
■ It can be easily replaced.
Safety Measures
■ The two-hand control buttons, area sensor, housing cover and other safety measures are used.
■ The cutter is easily operable, but it is recommendable that the operators receive safety training before use and wear gloves and goggles during use.
