◆Compressor(Motor) Recycling
1. Bracket and Pipe Cutter
2. Pneumatic Shell Cutter
3. Motor core copper wire cutter
4. Copper Wire Drawer
■Hydraulic Shell Cutter
※ Higher Model(Pneumatic Shell Cutter)
■Longitudinal Cutter
※ If necessary,After shell cutter processing
■Copper Wire Cutter
※ Only A/C Moter(Instead of Motor core copper wire cutter)
■(Ref)Compressor disassembly whole process

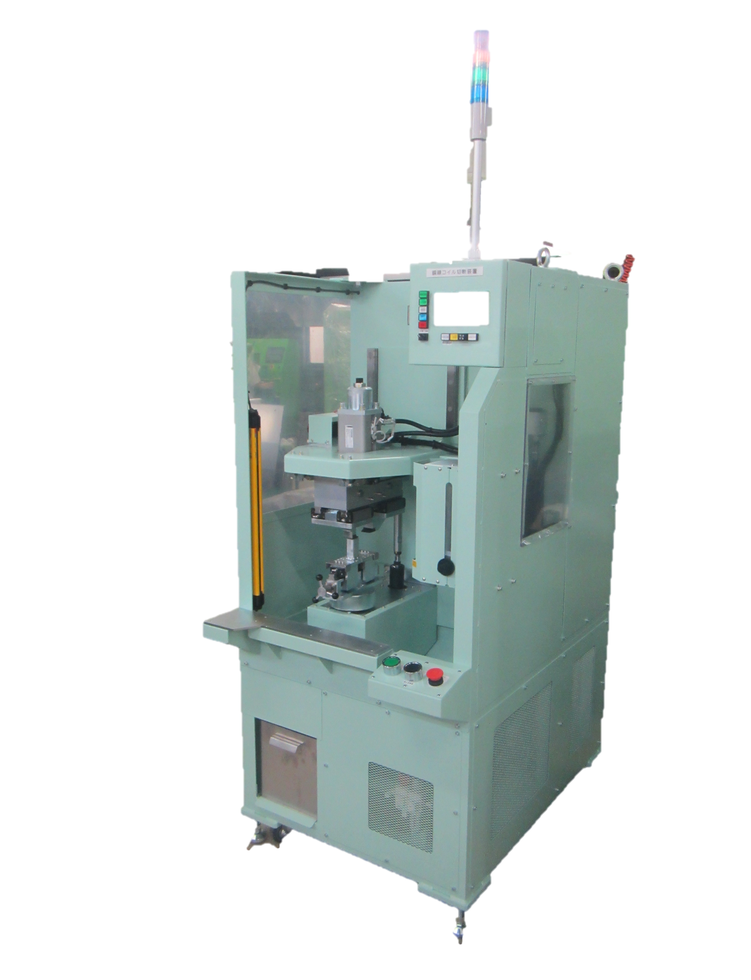

◆ Appearance
Pamphlet_Download
◆ Features
・Almost no chips are generated during cutting.
・Use of the nippers assures flat cut surfaces.
・The cut height can be arbitrarily selected.
・It is easily operable, and safety is assured.
◆ Videos
◆ General Specifications
| Power Supply | AC200V, three-phase(Japan) 2.5KVA(Japan) It depends on the country |
| Hydraulic Power Source | Max15MPa |

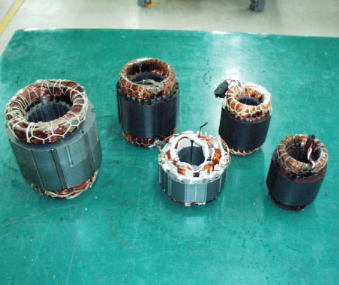

| Cut Diameter | Motor Core Inner diameter : φ60～80 |
| Cutting Time | 20～30 seconds (Exclude connecting and disconnecting time) |
| External Dimension | 750 (W) X 1,025(D) X 1,720(H) (mm) |
| Weight | 450Kg |

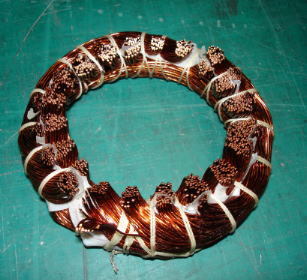

・Coil

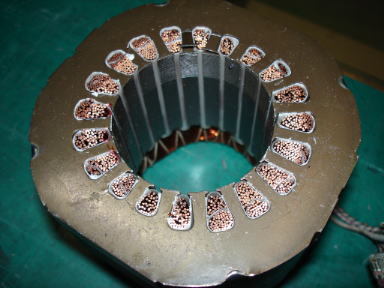

・Cut Coils on Edge of One Side of Stator
・Edge of Cut Coils
