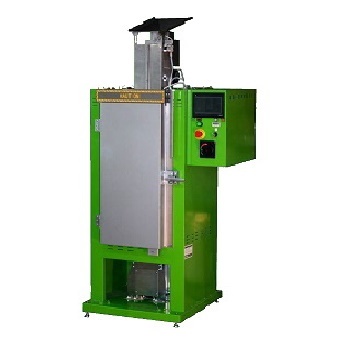

Minimization of Uneven Burning of Molds
Uniform temperature distribution inside the rotary electric furnace minimizes uneven burning of the molds.
Furthermore, it is not necessary to change the position of the molds during burning.

Minimization of Pollution and Odor Caused by Smoke
The afterburner with a unique burning system re-burns smoke inside the furnace, thus minimizing pollution and odor caused by smoke.

Maximum Burning Temperature:950℃
This maximum burning temperature is optimum for casting of gold, silver and platinum.

Compact Size
The unit is also suitable for multi-product and small lot production.
In spite of its compactness, the unit can store up to 13 molds that are 101 mm in diameter.

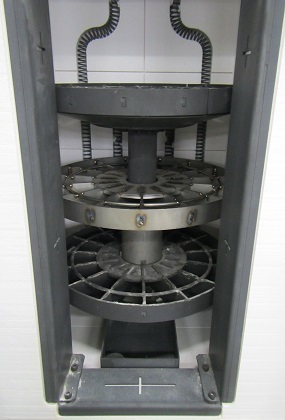

3 Rotary table : Option

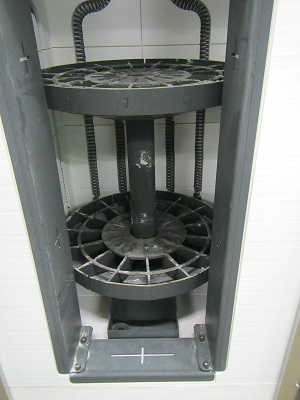

The basic specification is two rotary tables, but it is possible to have three. It is basically a platinum specification.





◆Specifications

Power Supply Single Phase  AC220V±10%, 50/60Hz
Power consumption 6KVA
Temp Setting range 0~950℃
Rotary Table Position 1~18
Operation Steps 12 steps
Number of memories 20
Maximum Flask height 230mm
Number of Flask  φ100:13、φ89:15、 φ76 : 15
Table Two tables
※Option Three tables
External dimension 895mm(W)×710mm(D)×1922mm(H)
Weight around220kg
