・New Injection Valve for Large capacity
・Easy parameter setting with data logging
・Easy clamp point adjustment
・Pneumatically controlled height adjustment & Memory
・Clamp Lock System (Patented)：Less burrs and weight changes
◆Specifications
| Power Supply | Single Phase 100V/115V±10%, 50/60Hz Single Phase 230V±10%, 50/60Hz |
| Air Supply | 0.4～0.7MPa |

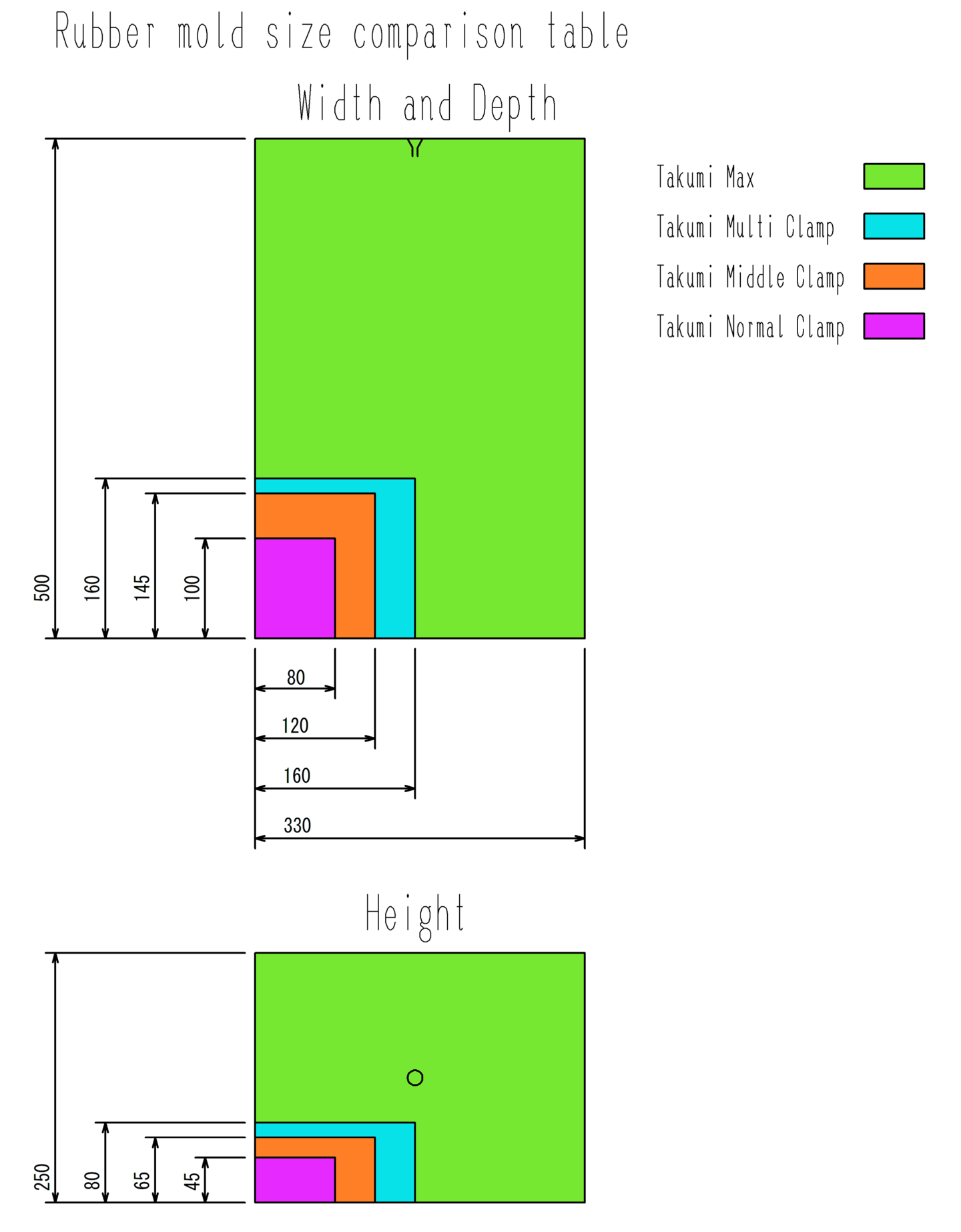

| Max Rubber Mold Size | 330mm(W)×500mm(D)×250mm(H) 12.9inch(W)×19.6inch(D)×9.8inch(H) |
| Temp setting range | 40～99℃ |
| Injection Pressure range | 10～200KPa |
| Clamp Pressure range | 60～420KPa |
| Wax capacity | around3kg |
| External dimension | 740mm(W)×950mm(D)×830mm(H) 29.1inch(W)×37.4inch(D)×32.6inch(H) |
| Weight | around110kg |
