HV(EV)車モーター銅線押し抜き装置
HV(EV) vehicle copper wire puncher【Model ：HVCD】

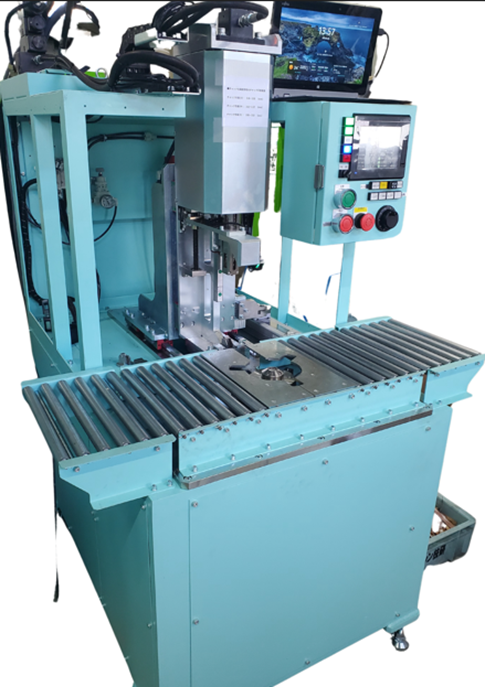

Exterior
Patented(No.7479657)
Brochure Download
Features
The HV(EV) vehicle copper wire cutter cuts the copper wires on both ends of the motor core and then pushes out the copper wires inside the slots.
-Can cut copper wires of various work sizes.
-Automatic operation after start-up until cutting is complete.
-An image recognition sensor automatically detects the punching position.
Movie
HV(EV) Vehicle copper wire puncher
General Specifications
| Power source | AC200V Three phase |
| Power comsumption | 2.0KVA |
| Air source | Unused |
| Hydraulic source | Unused |
| Cutting capacity | About 150 sec ※For 48 lots |
| Work set,remobval | Manual |
| Work holding | Clamp with push button |
| Safety measures | Option |
| Size | 1,140(W) X 1,360(D) X 1,880(H) (mm) |

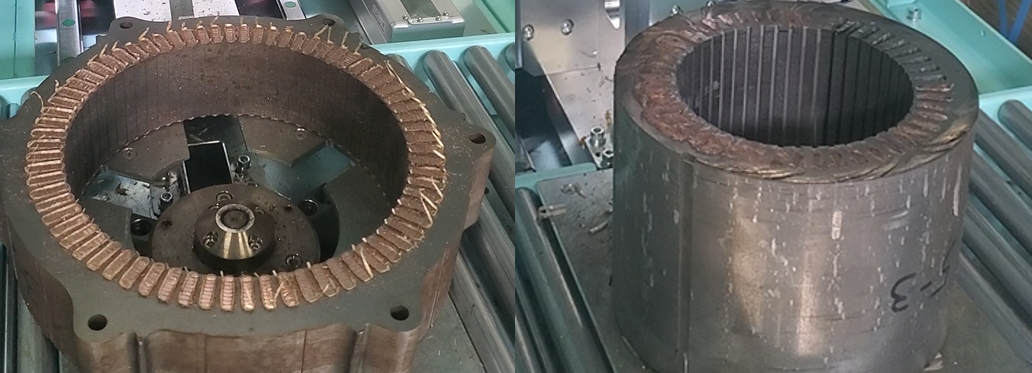

Before Processing
After Processing
