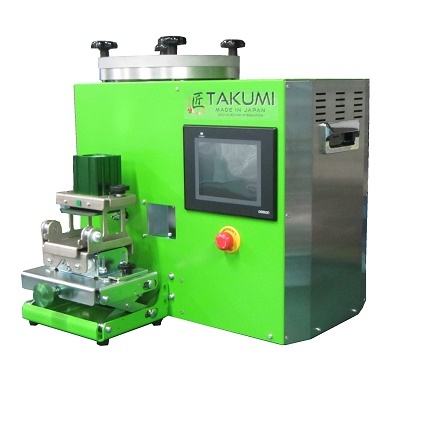

Takumi :
Multi Clamp & Normal Clamp :
■Simple design and easy operation
With the touch panel attached, the operation is easy to understand compared to the conventional model.
With VWI and DAC integrated, the design is simple compared to the conventional model.
■Height Adjusting
The clamp height can be easily adjusted by turning the handle by hand, so that the nozzle can be fitted into the rubber mold hole.
■Memory
3,000 memory

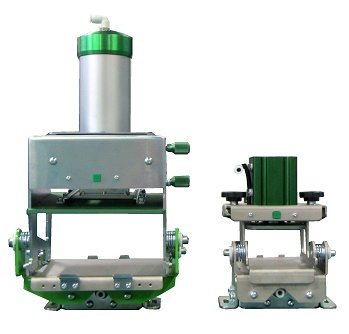

■Clamp (Option)
Normal Clamp : conventional type
Multi Clump : The multi-clamp can be mounted for medium- to large-sized molds. X and Y axes of the clamp position can be adjusted.
◆Specifications
| Power Supply | Single Phase 100V/115V±10%, 50/60Hz Single Phase 230V±10%, 50/60Hz |
| Air Supply | 0.4～0.7MPa |
| Max Rubber Mold Size | Normal : 80(W)×90(D)×40(H) Multi : 160(W)×162(D)×85(H) |
| Temp setting range | 40～90℃ |
| Injection Pressure range | 10～300KPa |
| Clamp Pressure range | 60～350KPa |
| Wax capacity | around3kg |
| External dimension | 450mm(W)×310mm(D)×450mm(H) |
| Weight | around27kg |
