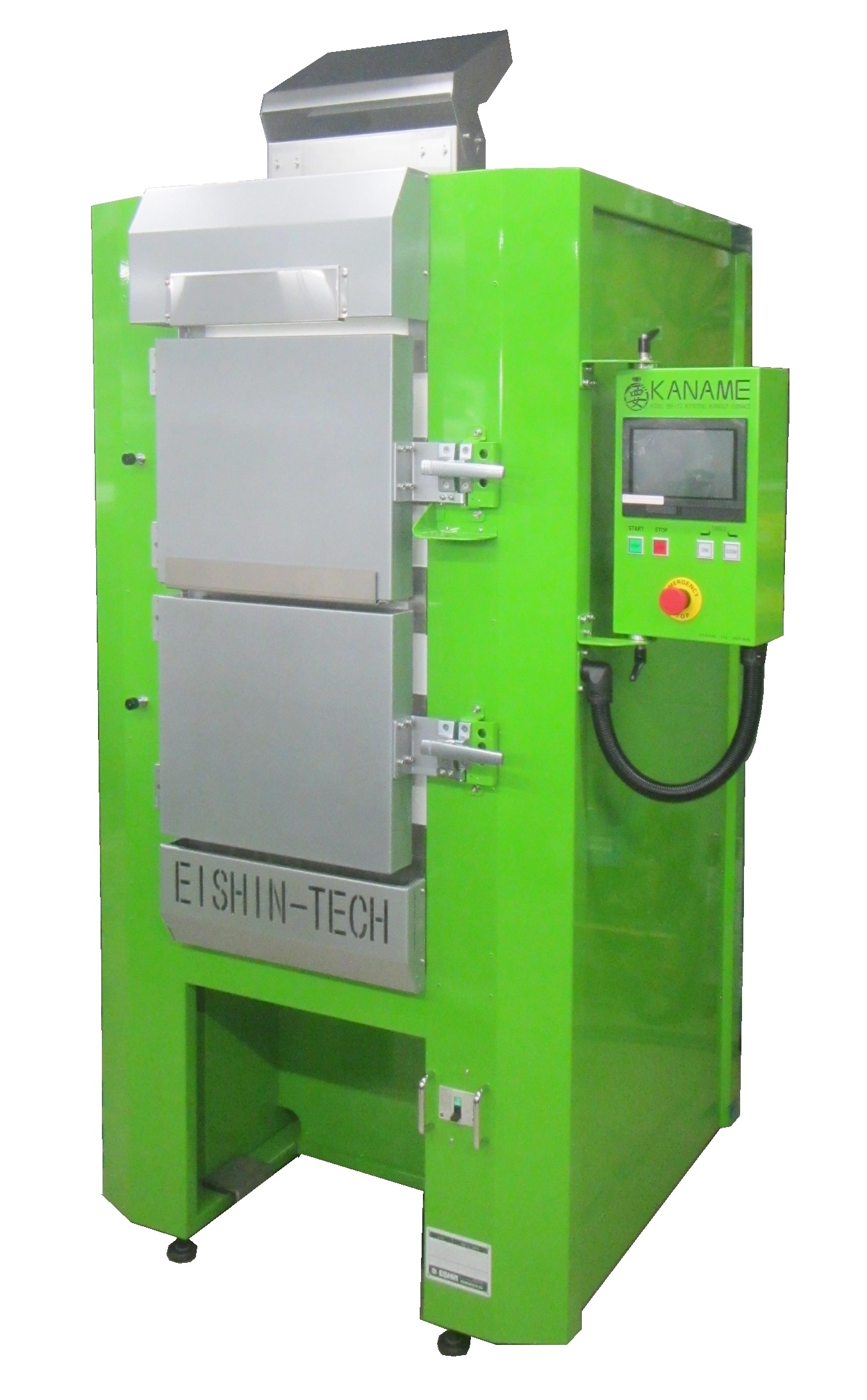

Minimization of Uneven Burning of Molds
Uniform temperature distribution inside the rotary electric furnace minimizes uneven burning of the molds.

Furthermore, it is not necessary to change the position of the molds during burning.

Minimization of Pollution and Odor Caused by Smoke
The afterburner with a unique burning system burns smoke inside the furnace, thus minimizing pollution and odor caused by smoke.

Burning of a Large Volume of Plaster Molds
Maximum storage capacity:
H:250mm×φ130 - 21 flasks
H:230mm×φ100 - 37 flasks
H:230mm×φ89 - 45 flasks

Overheat Prevention Device
If the set temperature is exceeded, the power is automatically turned off.



◆Specifications

Power Supply Three Phase  AC380V±10%, 50/60Hz
Power consumption Main Heater : 13.3KVA(380V)
After Burner : 3.7KVA(380V)
Temp Setting range 0~850℃
32~1,562°F
Rotary Table Position 1~48
Operation Steps 12 steps
Number of memories 20
Maximum Flask height 230mm
Number of Flask  φ130:21 flask
φ100:37 flask
Table Two tables
External dimension 895mm(W)×1023mm(D)×1800mm(H)
Weight around460kg
